Evaporative Condenser 1.2m³ Heat Exchanger with 5200KG Capacity
| Luogo di origine | Jiangsu, Cina |
|---|---|
| Marca | sureway |
| Quantità di ordine minimo | 1 |
| Prezzo | $28,000 |
Contattatemi per campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Dimensioni | 3246 2173 3927 | Volume | 1,2 m³ |
|---|---|---|---|
| Materiale interiore | SS304, 316L, acciaio al carbonio | Materiale esterno | SS304, FRP, PVC |
| Pressione di progettazione | 0,1-3 MPa | Temperatura di lavoro | -120 - 45 ℃ |
| Peso | 5200 CHILOGRAMMI | Temperatura ambiente massima | 45 ℃ |
| Agenti frigoriferi applicabili | R717/R22/R404A | Design antigelo | 1.2 |
| Componenti principali | PLC, recipiente a pressione, motore | Standard di progettazione | Asme |
| Tipo | Tipo di ventilazione forzato, tipo di ventilazione indotta | Intervallo di temperatura di lavoro | -20℃~120℃ |
| Evidenziare | 5200KG Evaporative Condenser,Evaporative Condenser Heat Exchanger,Heat Exchanger for Industrial Cooling |
||
Descrizione di prodotto
Evaporative Condenser
Product Specifications
| Attribute | Value |
|---|---|
| Core Components | PLC, Pressure vessel, motor |
| Dimensions (L×W×H) | 3246 × 2173 × 3927 mm |
| Volume | 1.2 m³ |
| Inner Material | SS304, 316L, Carbon Steel |
| Outer Material | SS304, FRP, PVC |
| Design Pressure | 0.1-3 MPa |
| Design Standard | ASME |
| Working Temperature | -120°C to 45°C |
| Warranty | 1 Year |
| Weight | 5200 kg |
| Type | Forced ventilation type, Induced ventilation type |
| Applicable Refrigerants | R717/R22/R404A |
Key Features
- Easy to Operate with PLC interface
- Remote Control and Monitoring capabilities
- Long Service Life with durable construction
- High Productivity and accurate temperature control
- Robust design with industrial-grade materials
- Environmental compatibility with various outer materials

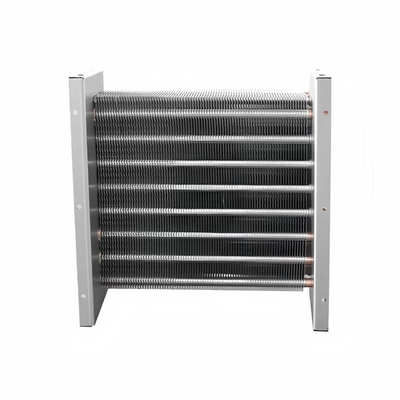

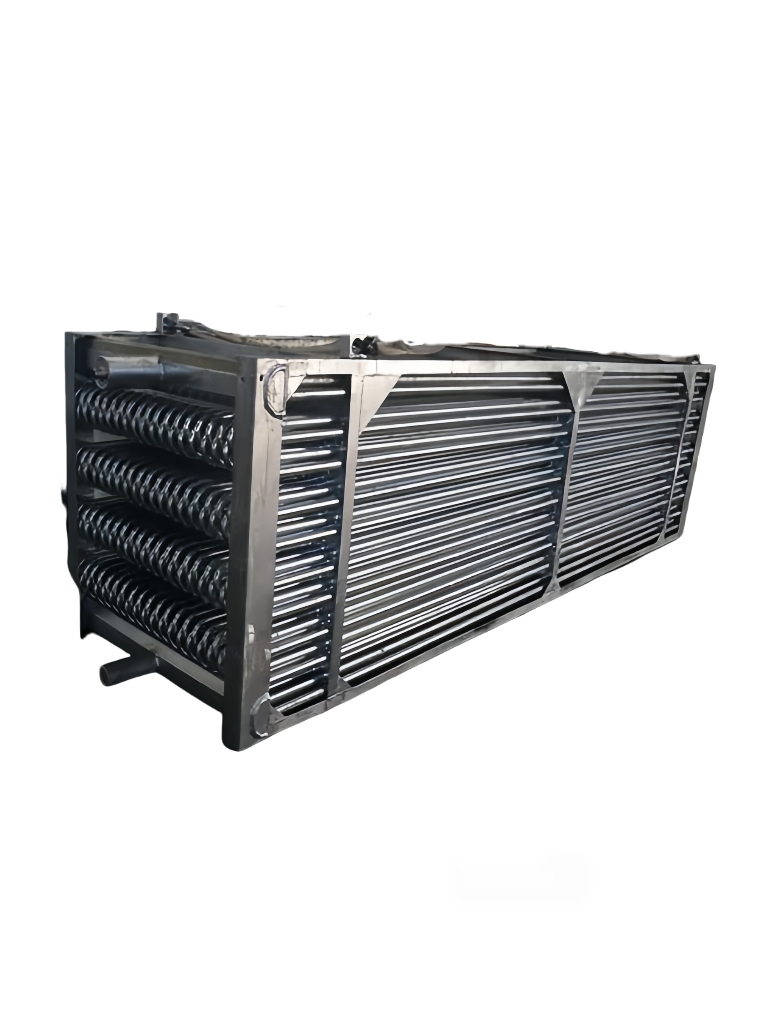

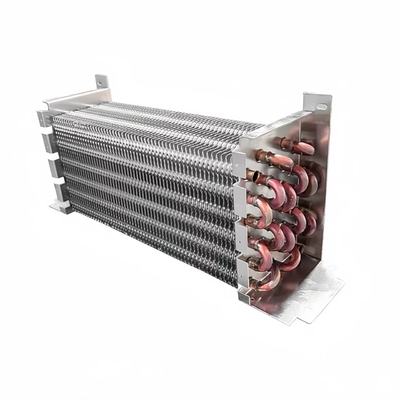

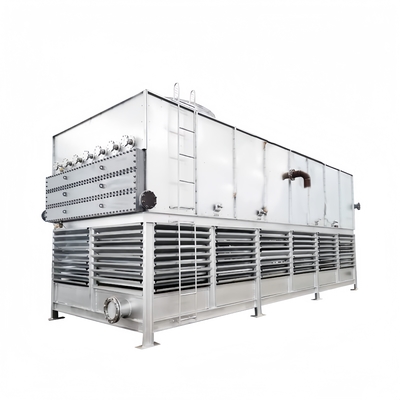

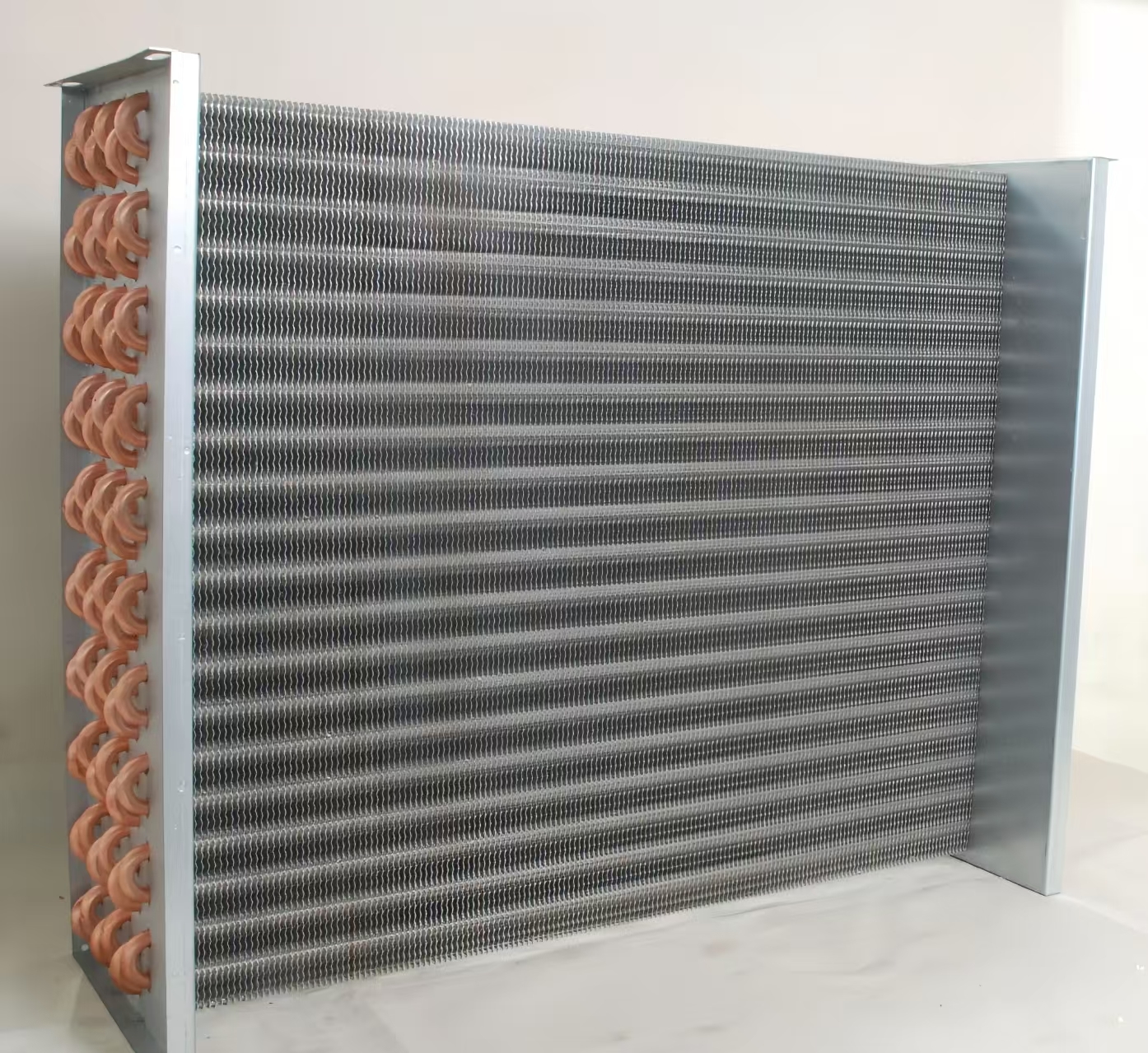

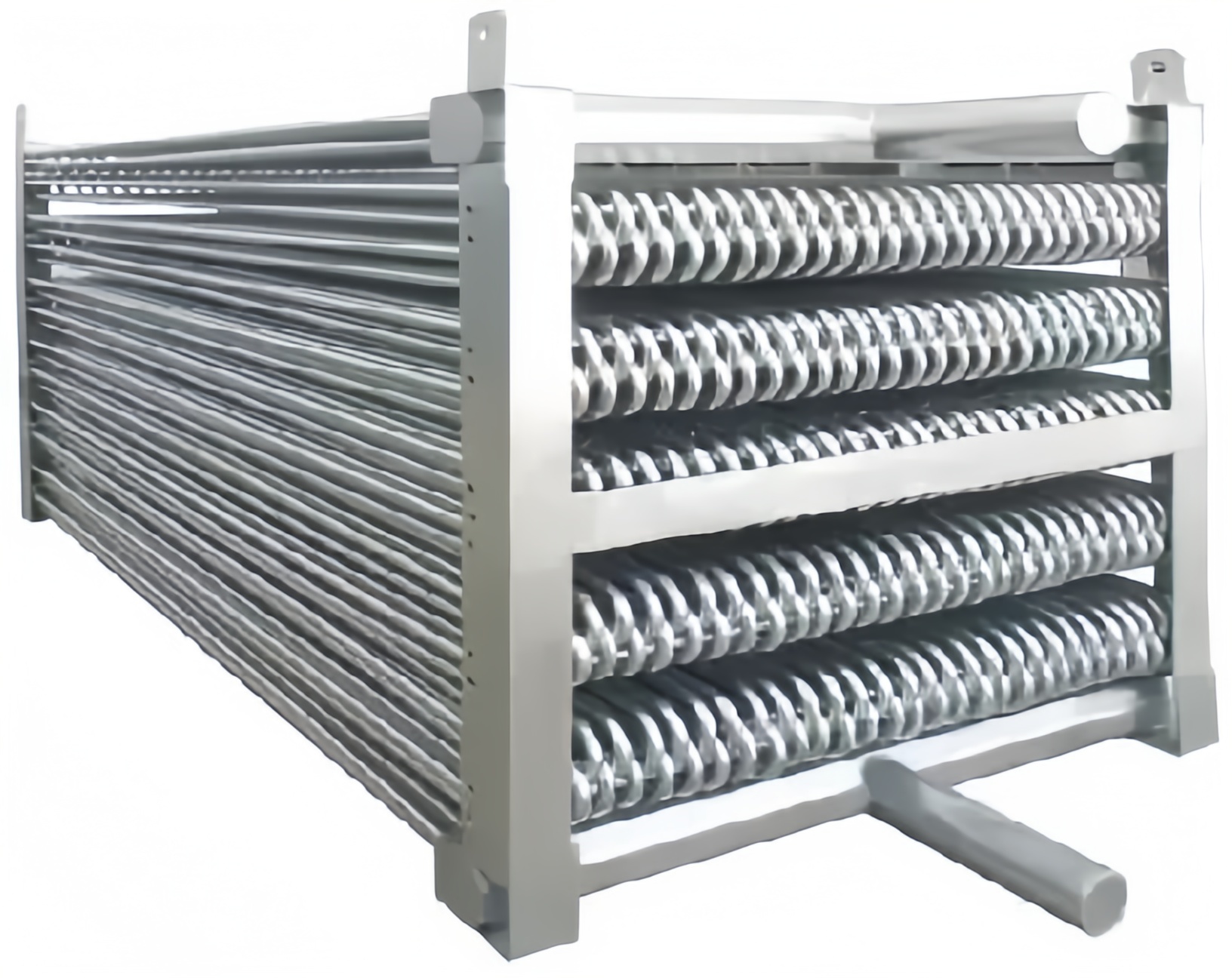

Product Images
Manufacturer Information
Shanghai Sureway Industrial Company Limited specializes in chemical engineering, offering advanced production technology development, engineering design, and equipment supply. With over 20 years of experience, we provide cutting-edge solutions in sulfur chemicals and gas liquefaction/separation technologies.
Frequently Asked Questions
Who are we?
Based in Shanghai since 2008, we serve global markets with a team of 51-100 professionals.
How do we guarantee quality?
Pre-production samples and final inspection before shipment ensure consistent quality.
What can you buy from us?
LNG plants, CO2 plants, chemical equipment, industrial automation systems, and more.
Why choose us?
We provide comprehensive technical support and specialized equipment for gas processing and chemical plants.
What services do we provide?
We accept various delivery terms and payment methods, with multilingual support available.
